| DO'S & DONT'S: |
| |
|
 |
Do not use oil for lubrication. |
|
|
Wash sprinkler with water only . |
| |
|
Use sprinkler very carefully . |
| |
|
Wash with water before kept in safe place . |
| |
|
Spread nozzle should be fitted in marked postition . |
| |
|
Do not throw sprinkler on the floor . |
|
| |
| ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| ADVANTAGES : |
| |
|
|
Portable & light weight – easy to handle. |
| |
|
Flexible and tough; hence can be applied to areas of variable topography. |
| |
|
Adaptable to nearly all irrigable soils since sprinklers are available in a wide range of discharge capacity. |
| |
|
Strong, durable and cost effective. |
| |
|
Fittings are corrosion resistant. |
| |
|
Protection from sunrays, as pipes are Ultra Violet Stabilized. |
|
| |
| ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| APPLICATIONS : |
| |
|
|
Agriculture : Effective irrigation of cotton, soyabean, gram, groundnut, pulses, wheat etc |
|
|
Industrial : Controlling of dust pollution in cement industries and mining pits. |
| |
|
Others : Play Ground and Golf course maintenance,Land Decor and Beautification. |
|
| ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| PRIMARY APPLICATIONS : |
| |
| All overhead irrigation, on hand lines, solid sets, permanent sets or mechanically moved systems. |
| |
| ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| FEATURES : |
| |
|
|
Durable, heavy duty, all brass construction. |
|
|
Stainless Steel springs. |
| |
|
Chemically resistant PTFE washers. |
|
|
Dual Nozzle. |
| |
|
Corrosion resistant. |
| |
|
Built to last. |
|
| ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| TECHNICAL SPECIFICATIONS: |
| |
|
|
Body trajectory : 27 Degrees. |
|
|
3/4" Male pipe connection. |
|
|
Maximum spacing : 22 Mts. |
|
| |
| ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| SPECIFICATIONS : |
| |
|
* At no wind condition |
|
|
Connection Size : 3/4" |
|
|
Trajectory Angle : 27o |
| |
|
Sprinkler Pressure : Min.100 kpa Max. 300kpa |
| |
|
Body,Arm,Bearing & Nozzles made of Engineering Plastic for Durability. |
|
| |

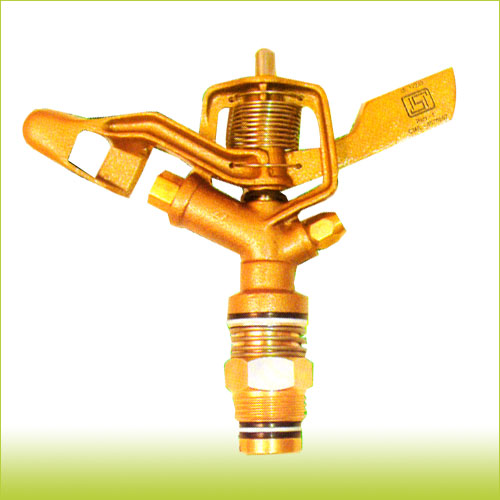

| METAL IMPACT SPRINKLER MODEL 3/4" FULL CIRCLE SPRINKLER |
MAIN
NOZZLE |
SPREADER
NOZZLE |
PRESSURE AT SPRINKLER |
DIAMETER OF COVERAGE |
DISCHARGE |
SPACING |
SPRINKED AREA |
WATER APPLICATION RATE |
| mm |
mm |
kpa |
m3/h |
m |
mm |
mm |
mm/h |
| 5.1 |
3.1 |
150 |
18 |
1.78 |
12x12 |
144 |
12.36 |
| 5.1 |
3.1 |
200 |
20 |
1.94 |
12x12 |
144 |
13.47 |
| 5.1 |
3.1 |
230 |
22 |
1.96 |
12x12 |
144 |
13.60 |
|
| |
NOTE :The Manufacturer reserve the right to
cancel, change the above specified models without any
notice. The Data provided in the website is to assist users to obtain best
performance. No warranty is expressed or implied, nor will any liability be accepted by the company for any consequence
occurred directly or indirectly from the use of such information. |
| |
 |
